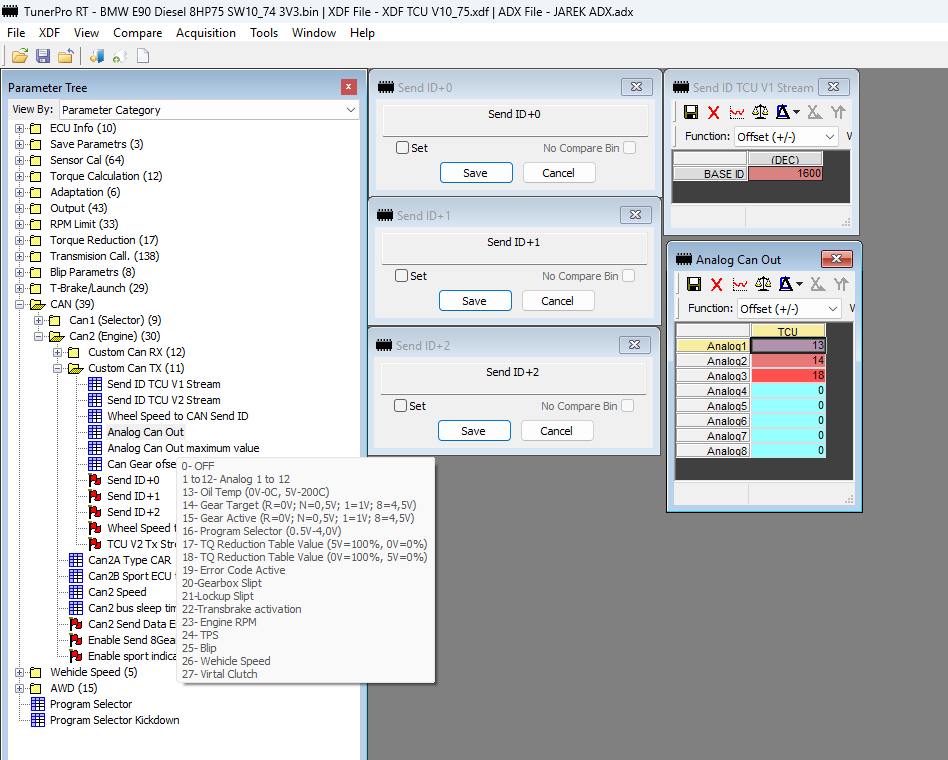

| Base ID | Configurable (Default H640) | ||
|---|---|---|---|
| Byte offset | Data | Data conversion | Range |
| 0:1 | Value defined in tcu | = Unsigned[msb:lsb] | Value defined in tcu (Standard 0-5000) |
| 2:3 | Value defined in tcu | = Unsigned[msb:lsb] | Value defined in tcu (Standard 0-5000) |
| 4:5 | Value defined in tcu | = Unsigned[msb:lsb] | Value defined in tcu (Standard 0-5000) |
| 6:7 | Value defined in tcu | = Unsigned[msb:lsb] | Value defined in tcu (Standard 0-5000) |
| Base ID+1 | Configurable (Default H641) | ||
|---|---|---|---|
| Byte offset | Data | Data conversion | Range |
| 0:1 | Value defined in tcu | = Unsigned[msb:lsb] | Value defined in tcu (Standard 0-5000) |
| 2:3 | Value defined in tcu | = Unsigned[msb:lsb] | Value defined in tcu (Standard 0-5000) |
| 4:5 | Value defined in tcu | = Unsigned[msb:lsb] | Value defined in tcu (Standard 0-5000) |
| 6:7 | Value defined in tcu | = Unsigned[msb:lsb] | Value defined in tcu (Standard 0-5000) |
| Base ID+2 | Configurable (Deful H642) | ||||
|---|---|---|---|---|---|
| Byte offset | Data | Data type | Ofset | Range | Resolution |
| 0 | Gear | Signed [Byte] | 0 | For -1 to 8 | 1Gear/bit |
| 1 | Oil Temp. | Unsigned[Byte] | -40 | For-40 to 215 | 1C/bit |
| 2 | Program SW. | Unsigned[Byte] | 0 | For 1 to 8 | 1/bit |
| 3 | Error Code. | Unsigned[Byte] | 0 | For 0 to 255 | 1/bit |
| 4 | FLAGS1 | Bitfield | – | – | – |
| 5 | FLAGS2 | Bitfield | – | – | – |
| 6 | V. SPEED | Unsigned[Byte] | 0 | For 0 to 510 | 2 kmh/h / bit |
| 7 | – | – | – | – | – |
| FLAGS1 | ||
|---|---|---|
| Bit index | Name | Description |
| 0 | Torque reduction | 1 – is active when the transmission is upshifting |
| 1 | Safety mode | 1 – is active safety mode in TCU |
| 2 | Parking | 1 – is active |
| 3 | Oil fan | 1 – is active |
| 4 | T-Brake | 1 – is active |
| 5 | Brake selenoid ON | 1 – is active |
| 6 | Neutral | 1 – is active |
| 7 | Blip out | 1 – is active |
| FLAGS2 | ||
|---|---|---|
| Bit index | Name | Description |
| 0 | Automatic Mode | 1 – is active |
| 1 | Adaptation activation | 1 – is active |
| 2 | Hand Brake | 1 – is active |
| – | – | – |
| – | – | – |
| – | – | – |
| – | – | – |
| – | – | – |
