Warning!!! In standalone controllers, torque is not transmitted correctly via canbus and the internal torque calculation in the TCU must be correctly calibrated

Basic configuration to be imported in Emu Black

In the can configuration table: CAN>>CAN2 Type Car
insert value “1”
TCU will connect in the communication standard “Emu Black” and “Emu CLassic”

Download EMU BLACK from CAN communication

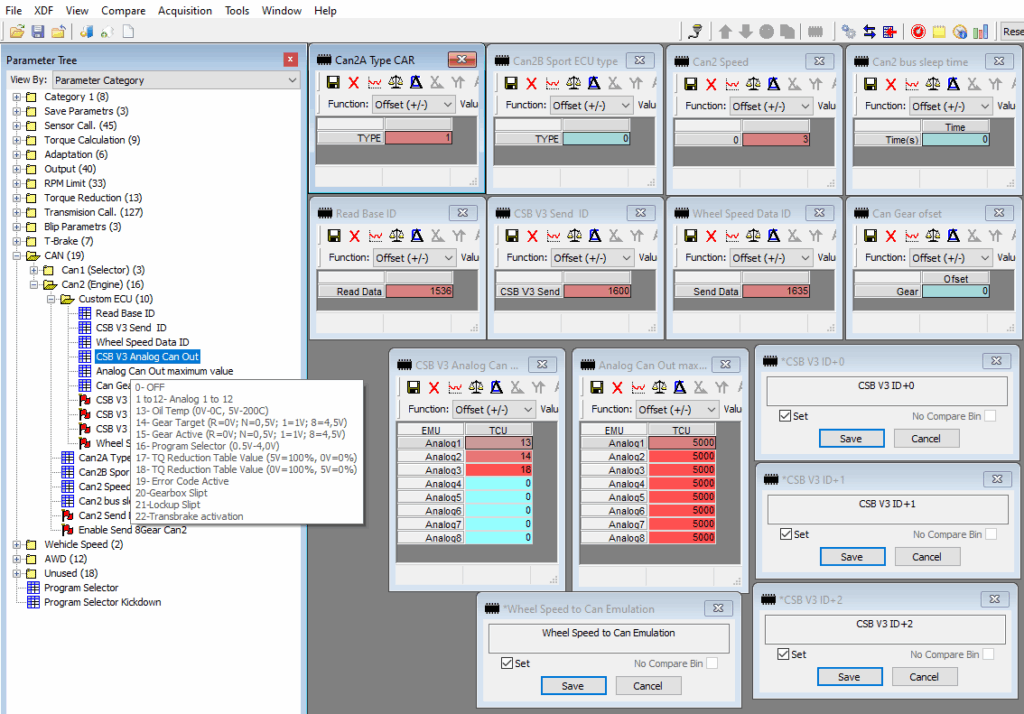

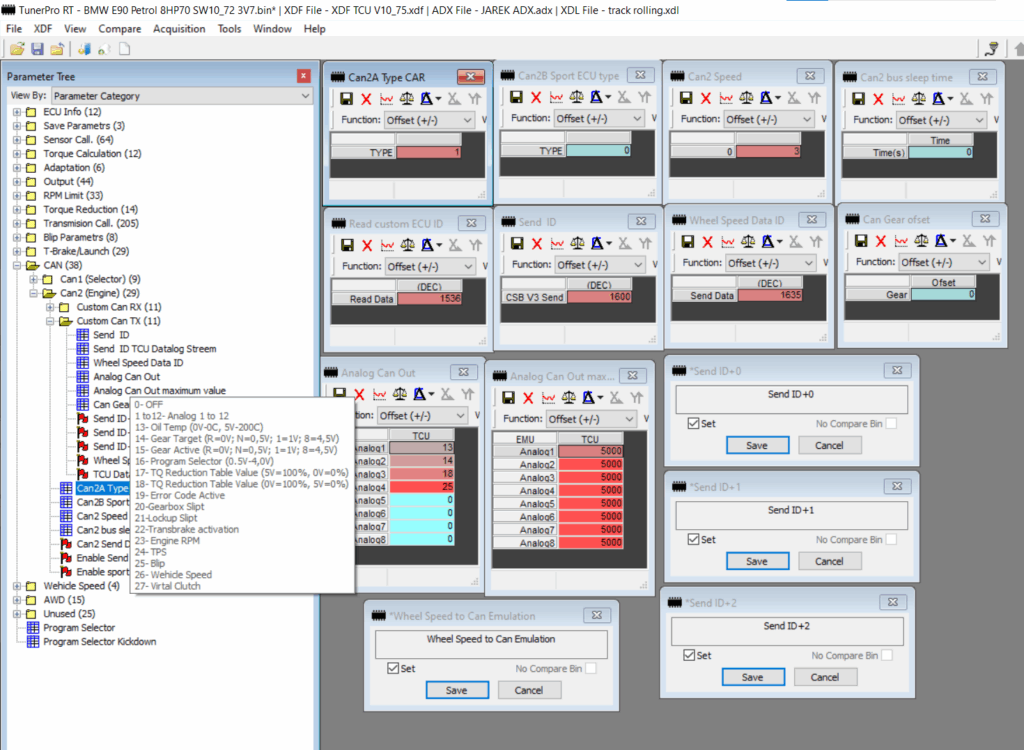

TCU configuration For EMU BLACK
TCU emulates the ECM CAN SWITCH BOARD (CSB V3) expansion board
the “Analog Can Out” map is for custom data sending. By entering the appropriate value, we can send any parameter
Remember that frame addresses are given in decimal value, not in hexadecimal value

EMU BLACK settings:

Warning! If after configuring the canbus the parameters in the TCU flash, it may mean that there is a canbus frames conflict, try changing the canbus address in the TCU and ECU.
