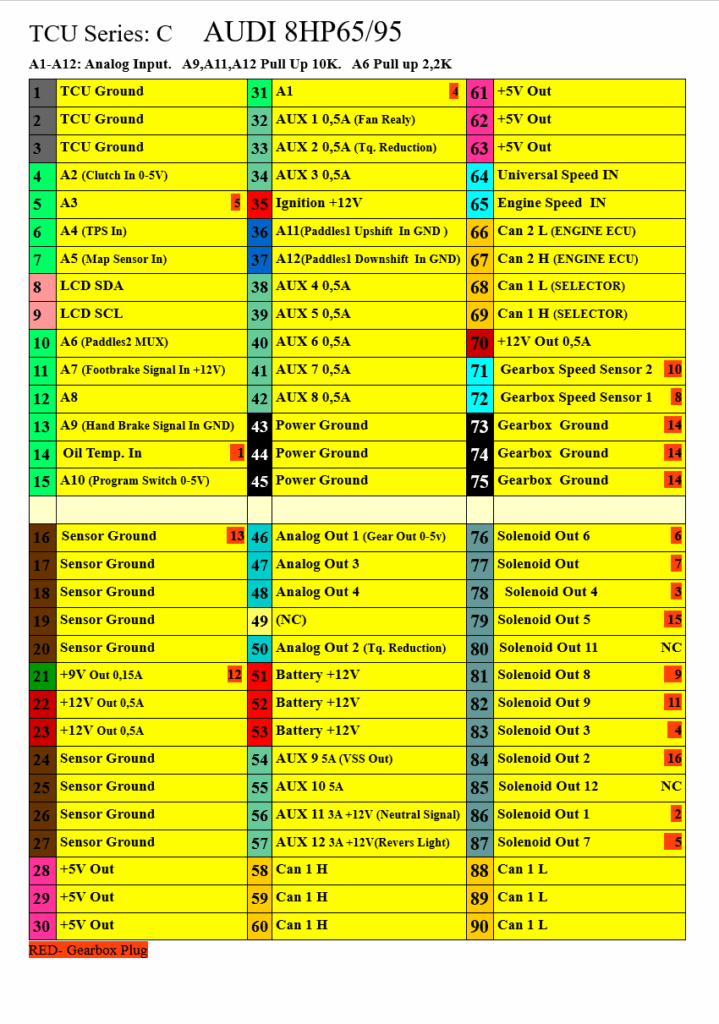

ATTENTION!! For 8hp65 connection between the gearbox and the TCU is different than the standard connection of BMW 8hp45/50/70/75 and 8hp55 without selector cable cord.

*PCB mounted in 8hp Mechatronic TCM is standard as for BMW 8hp45/50/70/75

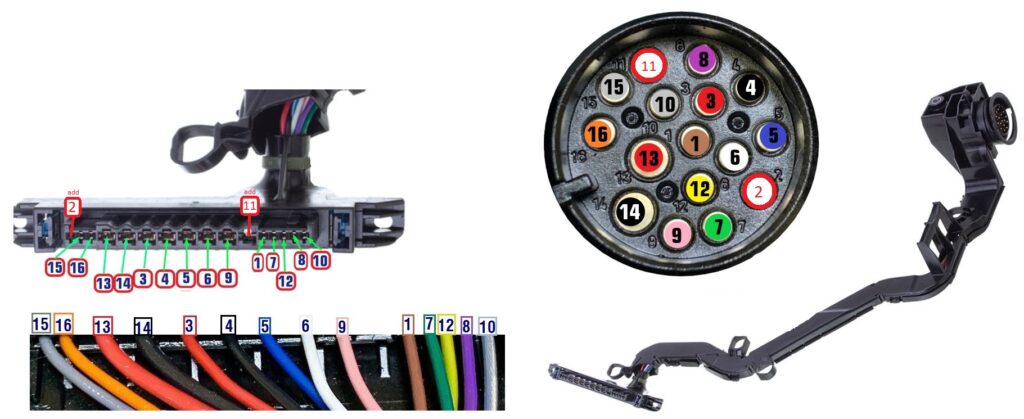

*For the 8hp65 Audi, add the missing wires in the internal gearbox harness between the mechatronic TCM and the 8hp round connector.
