PMC sequential shifter

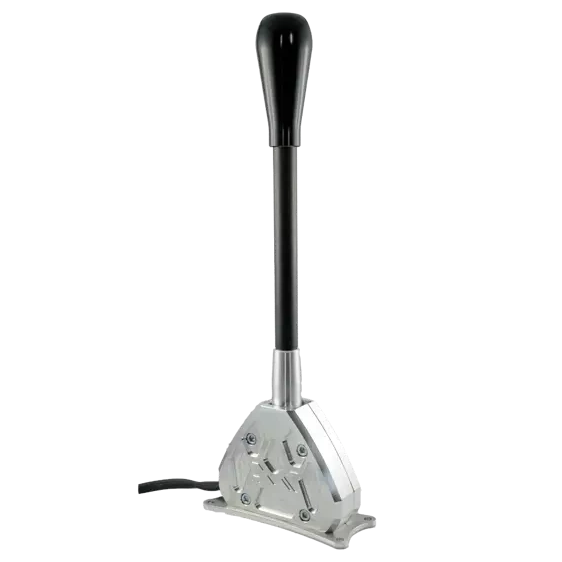

PMC sequential shifter

Wiring connection:

Brown – 5V

Blue – GND

Black – signal
