Plug and play harness by TurboLamik for 6HP #
We offer a plug and play kit for cars with 6HP gearbox. There are no modifications required to the car except for fitting 8HP transmission and TCU.

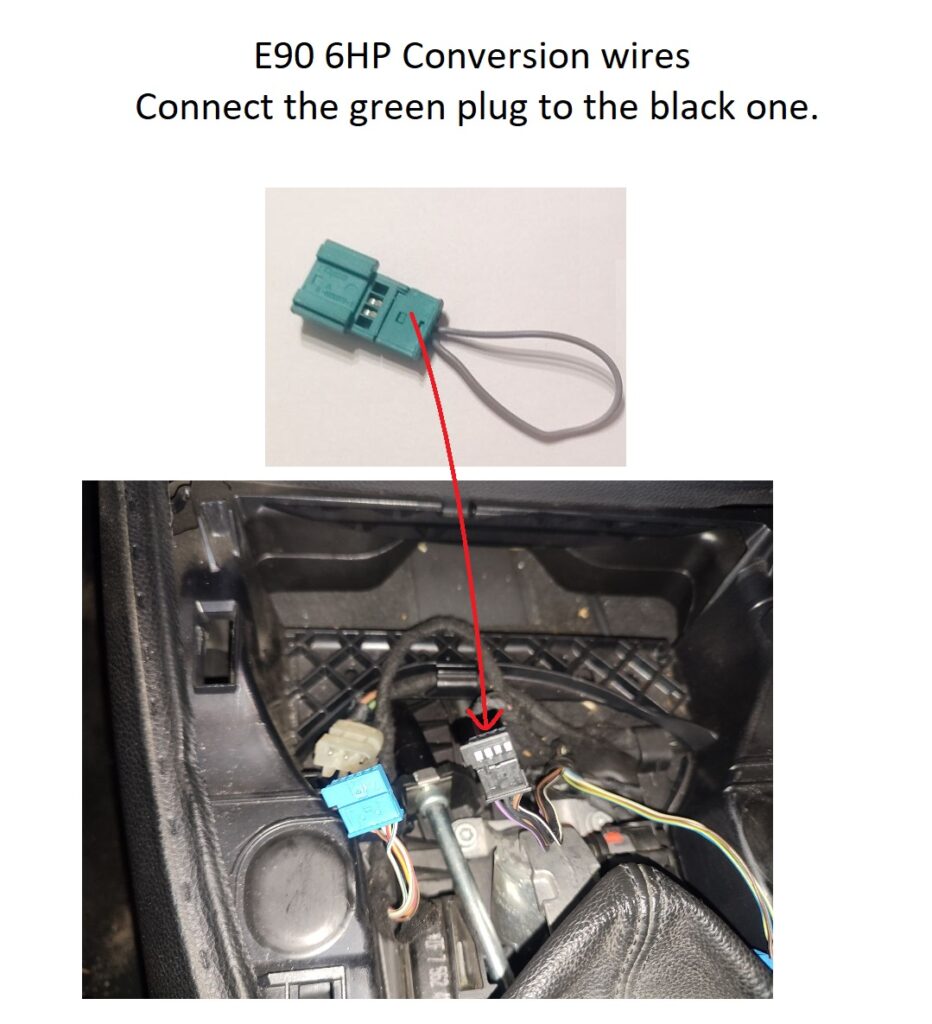

Additionally you are required to connect provided green plug into gear shift level.
Manual car #
Applies to N43, N51, N52, N53, N54: #
X60001 ECU connector
| ECU pin | TCU plug | Description |
|---|---|---|
| 1 | 66 | Engine CAN Low |
| 14 | 67 | Engine CAN High |
X60002 ECU connector
| ECU pin | TCU plug | Description |
|---|---|---|
| 1 | 35 | Igntion |
X60003 ECU connector
| ECU pin | TCU plug | Description |
|---|---|---|
| 1 | 51-53 | +12V Battery |
Applies to N55: #
X60001 ECU connector
| ECU pin | TCU plug | Description |
|---|---|---|
| 7 | 66 | Engine CAN Low |
| 8 | 67 | Engine CAN High |
| 46 | 35 | Ignition |
Applies to all: #
CAS (must be coded to automatic)
| CAS pin | TCU plug | Description |
|---|---|---|
| 11 | 42 (Aux 8) | Selector lock signal |
| 41 | 56 (Aux 11) | Neutral |
TunerPro configuration #
Start by reading about Tuner Pro setup

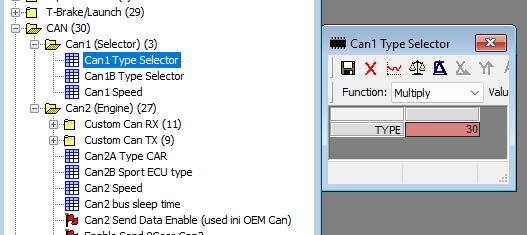

If your car was auto before set CAN1 to 30, if not set it to the shifter you are using: List of supported CAN shifters

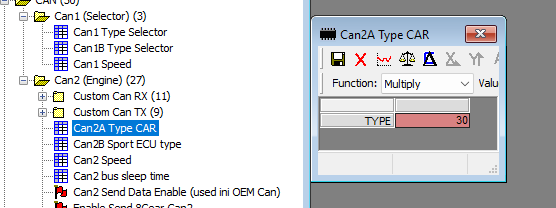

Set CAN2 to 30

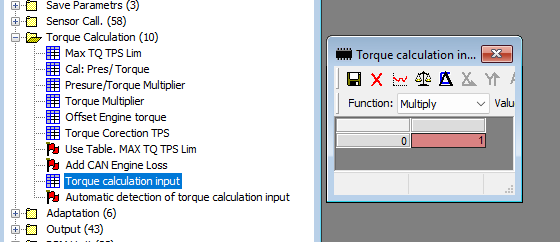

Set Torque Calculation -> Torque Calculation Input to “1”
